Wall panel trims are essential for achieving a clean, sealed and professional finish when installing bathroom or shower panels. They hide exposed edges, protect vulnerable corners, and create a watertight seal that prevents moisture from getting behind your panels. Whether you’re fitting panels in a full bathroom renovation or updating a single shower enclosure, choosing the right wall panel trims ensures your installation looks flawless and lasts for years.
This expanded guide explains the different types of panel finishing trims, where each one is used, how to choose the correct size and colour, and why trims are crucial for waterproofing and hygiene.
What Are Wall Panel Trims?
Wall panel trims are finishing profiles designed to connect, edge or seal PVC and laminate wall panels. They create smooth transitions between panels, protect cut edges, and prevent water from entering gaps — especially important in high‑moisture areas like bathrooms, kitchens and utility rooms.
Why trims matter
Trims are not just decorative. They play a structural and protective role:
- Improve hygiene by eliminating mould‑prone gaps
- Protect panel edges from swelling, chipping or impact damage
- Enhance waterproofing in showers and wet rooms
- Create a polished, professional appearance
- Allow panels to expand and contract without exposing gaps
Without trims, even the best panels can look unfinished and become vulnerable to moisture damage.
Types of Wall Panel Trims
Each trim has a specific purpose. Using the right one ensures your panels fit securely, align correctly and remain watertight.
End Cap Trims
End caps finish any exposed edge of a panel — for example:
- where a panel ends at a doorway
- around windows
- half‑height installations
- boxed‑in pipework
They provide a clean, straight edge and prevent moisture from reaching the panel core.
Internal Corner Trims
Used for 90° inside corners where two walls meet. They:
- hide uneven cuts
- create a neat join
- stop water from entering the corner gap
- help panels slide into place smoothly
These are essential in shower enclosures.

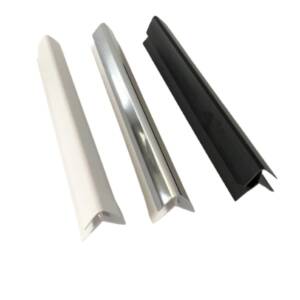

External Corner Trims
Designed for outward‑facing corners such as:
- boxed‑in pipework
- nib walls
- alcove edges
They protect the corner from knocks and create a smooth, continuous finish.

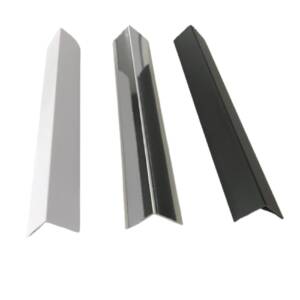

Rigid Angle Trims
Rigid Angle trims are firm 90° profiles used for straight external edges. They:
- protect exposed corners
- cover uneven cuts
- create a sharp, clean finish
- add strength to high‑traffic areas
Ideal for boxed‑in pipework, window reveals and any corner that needs extra durability.
H‑Joint Trims
H‑joints connect two panels along a straight wall when one panel isn’t long enough. They:
- keep the join aligned
- maintain a watertight seal
- allow for expansion
Perfect for long walls or full‑height installations.
Quadrant Trims
A curved finishing trim ideal for bridging small gaps between panels and:
- ceilings
- baths
- shower trays
- window ledges
They help create a soft, rounded finish and improve waterproofing.
Cladseal Trim
Cladseal is a flexible, waterproof finishing trim designed specifically for bathrooms. It sits where wall panels meet a bath or shower tray, creating a watertight seal that prevents moisture from getting behind the panels. This makes it essential for shower areas, wet rooms, and any high‑moisture installation.
Choosing the Right Wall Panel Trim Size (5mm, 8mm & 10mm)
Wall panel trims come in three sizes — 5mm, 8mm and 10mm — and the size must always match the thickness of your wall panels. This ensures the panels slide securely into the trim channel and create a tight, watertight seal.
Trim size guide
- 5mm wall panel trims — for lightweight PVC panels
- 8mm wall panel trims — for mid‑thickness, more rigid panels
- 10mm wall panel trims — for thicker, premium‑grade panels requiring a deeper channel
What happens if you choose the wrong size?
- Panels may sit loosely
- Gaps may appear
- Silicone may not bond properly
- Waterproofing can fail
- Panels may rattle or shift over time
Matching trim size to panel thickness is essential for a secure, long‑lasting installation.
Choosing the Right Trim Colour
The colour of your wall panel trims affects the final look of your installation. Trims can either blend in or create a contrasting design feature.
Colour options
- White trims — clean, simple, and match most PVC panels
- Black trims — bold and modern, ideal for contemporary bathrooms
- Chrome trims — premium, reflective finish that pairs beautifully with marble and stone‑effect panels
Design tips
- Match chrome trims with chrome shower frames and taps
- Use black trims with dark or industrial‑style panels
- Choose white trims for a minimalist, seamless look
- Match trims to grout‑line colours in tile‑effect panels
Wall Panel Trims for Shower Areas
In wet zones such as shower enclosures, trims are essential for waterproofing and hygiene.
Where to use trims in a shower
- Internal corners for inside joins
- External corners for outward edges
- End caps around openings or cut edges
- Quadrants where panels meet ceilings, baths or shower trays
- Cladseal where panels meet a bath or shower tray – this trim creates the watertight base seal that prevents leaks and long‑term moisture damage.
Why trims matter in showers
- Prevent water from reaching the wall behind
- Reduce mould growth
- Improve long‑term durability
- Create a cleaner, more professional finish
Always pair trims with a high‑quality silicone sealant to maintain a watertight barrier.
How to Fit Wall Panel Trims
A correct installation ensures your trims stay secure and watertight.
Step‑by‑step
- Measure and cut trims to size
- Dry‑fit to check alignment
- Apply adhesive or silicone
- Slide panels into the trim channel
- Seal all edges for a watertight finish
Pro tips
- Use masking tape to keep trims in place while silicone cures
- Cut trims with a fine‑tooth saw for clean edges
- Always seal the back of the trim channel in wet areas
FAQs About Wall Panel Trims
Do I need wall panel trims?
Yes — trims are essential for sealing edges, preventing water ingress and achieving a professional finish.
Are wall panel trims waterproof?
Yes. When installed with silicone, trims create a fully waterproof barrier.
Which trim do I use for corners?
Use internal corner trims for inside corners and external corner trims for outward‑facing edges.
Which trim size do I need?
Choose 5mm, 8mm or 10mm depending on the thickness of your panels.
Can I mix trim colours?
Yes — but matching trims to fixtures creates a more cohesive design.
